●雙作用
●輸出力大
●配機械鎖可長期可靠保持重物不下降(機械鎖是經過計算的梯形螺紋)
●配液壓鎖，安全閥
●可實現多頂使用，但液壓鎖需卸掉，旋上快換接頭
●快換接頭通用
●特殊要求可定制

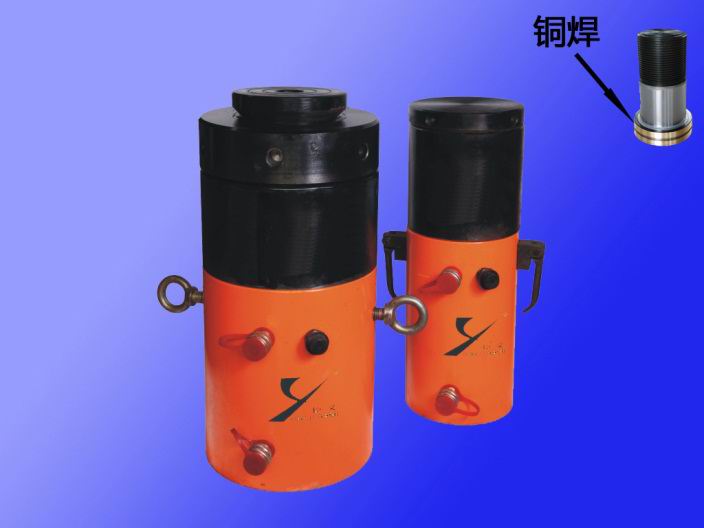

●活塞桿使用德國技術燒銅焊、鍍硬鉻，防銹
●維修簡單,無需專用工具
主要技術參數與外形尺寸
|
項目
型號 |
起重 力 T |
行程
mm |
工作 壓力 Mpa |
最低 高 度 mm |
油缸 外徑 mm |
油缸 內徑 mm |
頂盤 直經 mm |
油口與底 面距離 mm |
安裝中心 孔直徑 mm |
安裝 孔 mm |
|
QFS50T-12.5 |
50 |
125 |
62.4 |
430 |
140 |
100 |
65 |
42 |
70 |
M16 |
|
QFS50T-16 |
160 |
500 |
||||||||
|
QFS50T-20 |
200 |
580 |
||||||||
|
QFS75T一12.5 |
|
125 |
59.9 |
455 |
165 |
125 |
85 |
53 |
95 |
M16 |
|
QFS75T-16 |
75 |
160 |
525 |
|||||||
|
QFS75T-20 |
200 |
605 |
||||||||
|
QFSl00T一12.5 |
100 |
125 |
63.7 |
470 |
180 |
140 |
95 |
55 |
110 |
M20 |
|
QFSl00T一16 |
160 |
540 |
||||||||
|
QFSl00T一20 |
200 |
620 |
||||||||
|
QFSl50T-12.5 |
|
125 |
61.1 |
475 |
220 |
175 |
120 |
55 |
145 |
M20 |
|
QFSl50T-16 |
150 |
160 |
545 |
|||||||
|
QFSl50T-20 |
200 |
625 |
||||||||
|
QFS200T-12.5 |
200 |
125 |
62.4 |
32l |
250 |
200 |
145 |
65 |
160 |
M20 |
|
QFS200T-16 |
160 |
580 |
||||||||
|
QFS200T-20 |
200 |
660 |
||||||||
|
QFS250T-12.5 |
250 |
125 |
61.6 |
530 |
280 |
225 |
155 |
66 |
190 |
M24 |
|
QFS250T-16 |
160 |
600 |
||||||||
|
QFS250T-20 |
200 |
680 |
||||||||
|
QFS320T-12.5 |
320 |
125 |
63.9 |
545 |
320 |
250 |
175 |
75 |
220 |
M24 |
|
QFS320T-16 |
160 |
615 |
||||||||
|
QFS320T-20 |
200 |
695 |
||||||||
|
QFS400T-12.5 |
400 |
125 |
63.7 |
590 |
350 |
280 |
195 |
91 |
240 |
M24 |
|
QFS400T-16 |
160 |
660 |
||||||||
|
QFS400T-20 |
200 |
740 |
||||||||
|
QFS500T-12.5 |
500 |
125 |
60.9 |
615 |
400 |
320 |
245 |
93 |
280 |
M24 |
|
QFSS00T-16 |
160 |
685 |
||||||||
|
QFS500T-20 |
200 |
765 |
||||||||
|
QFS630T-20 |
630 |
200 |
60.7 |
835 |
450 |
360 |
275 |
114 |
300 |
M24 |
|
QFS800T一20 |
800 |
200 |
62.4 |
890 |
550 |
400 |
320 |
114 |
380 |
M24 |
|
QFSl000T一20 |
1000 |
200 |
61.6 |
960 |
600 |
450 |
360 |
127 |
430 |
M24 |
